12L Specimen transport transfer catalgte B UN3373 cold chain box

Product Overview

• Certified & Compliant: Meets UN3373 standards for transporting Biological Substances Category B in line with European (EU) and international (IATA/DOT) regulations.
• Temperature Control: Maintains internal temperature between 2–8°C for up to 12 hours, ideal for preserving sensitive biological samples.

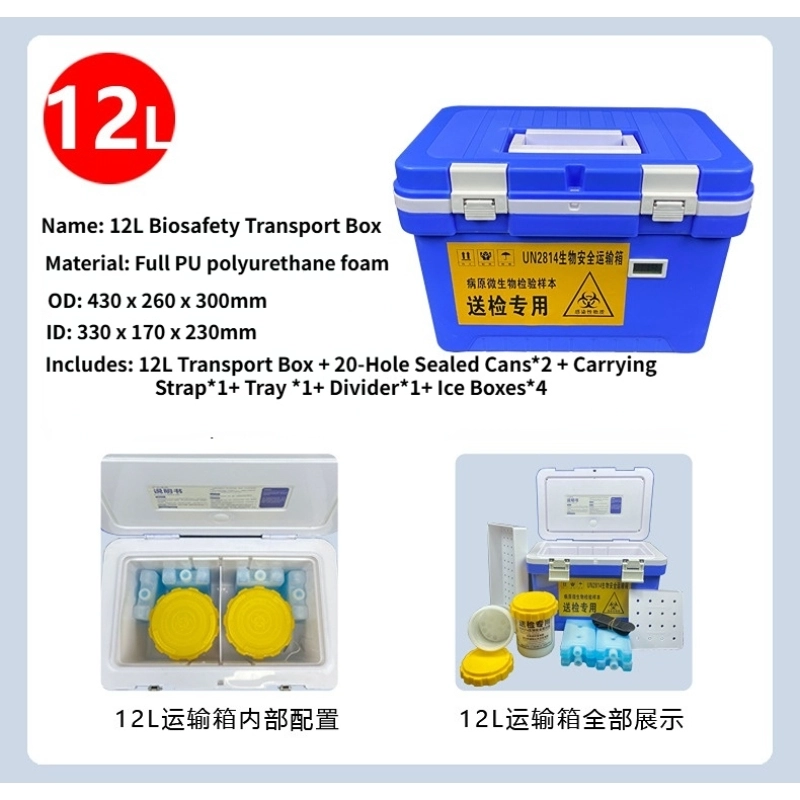

• Capacity: 12-liter volume with durable, insulated construction for secure transport.

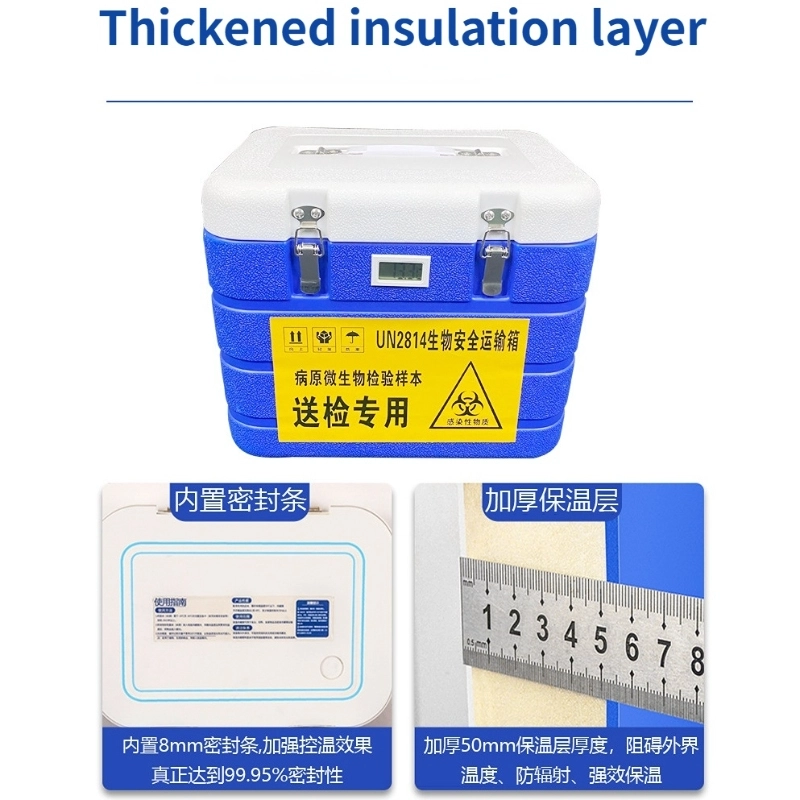

Insulation:

• 1 cm thick PU foam layer.
• 3 mm vacuum-insulated panels for enhanced thermal efficiency.
• Material: Heavy-duty polyester (1680D), PVC, and EVA exterior with a water-resistant, washable lining.

Key Features

Temperature Monitoring:
Built-in external digital display with an internal probe for real-time temperature tracking.
Thermometer powered by a replaceable LR44 coin cell battery.

Durable Design:
Reinforced zipper closure for airtight sealing.
Removable, washable inner lining for easy decontamination.

Optimized Cold Retention:
Foil-lined pockets to secure ice bricks and maximize cooling efficiency.
Resists temperature fluctuations caused by external heat, frequent lid openings, or payload conditions.

Safety & Leak Prevention:

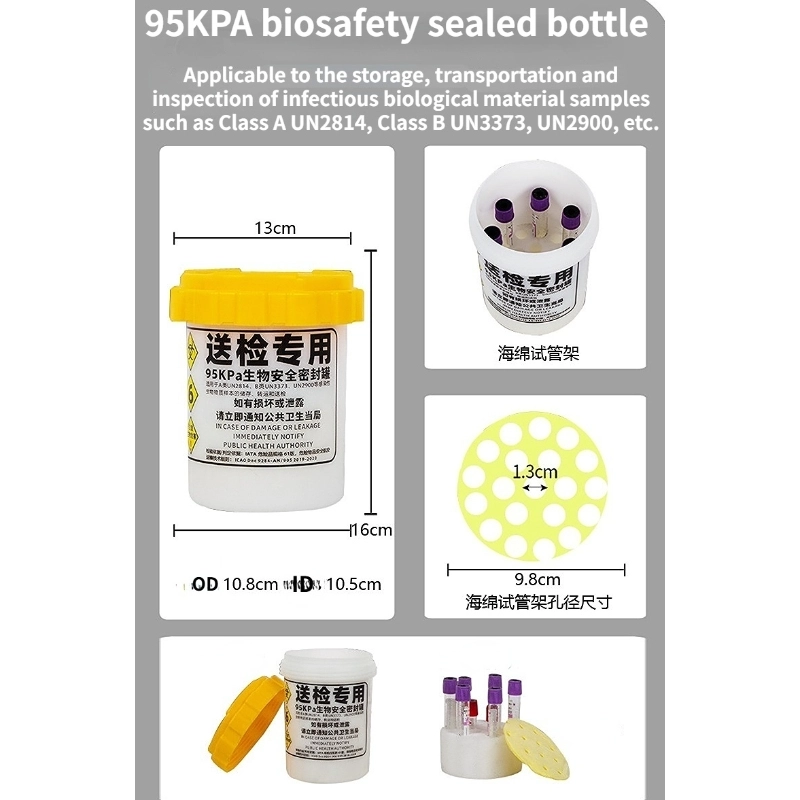

Compatible with heavy-duty secondary canisters (sold separately) for secure specimen transport:
95kPa-rated, thick-walled HDPE construction.
O-ring seal for leak-proof containment.
Holds 12–20 tubes (varies by tube size).

Certifications & Compliance

• CE-certified for medical device standards.
• Complies with IATA Packing Instruction 650 for Category A/B infectious substances (UN2814/UN2900/UN3373).
• Tested and validated by the National Packaging Research and Test Center (IATA DGR Rule 63 compliant).
• Manufacturer holds ISO 9001 (quality), ISO 14001 (environmental), and ISO 45001 (safety) certifications.

User Instructions

Preparation:
Freeze all 4 gel ice bricks for at least 12 hours at -18°C before use.
Insert ice bricks into designated foil pockets inside the cooler.

Loading:
Wait until the display shows the desired temperature range (2–8°C).
Place pre-chilled samples or biological substances into the bag.

Transport:
Avoid direct sunlight and minimize lid openings to preserve cold life.
For international shipments, pair with compliant primary containers, absorbent materials, and rigid outer packaging.

Maintenance:
Replace ice bricks as needed; refurbish canister O-rings periodically for optimal sealing.

Warnings

Do not use water-based ice packs for pharmaceuticals/vaccines.
Cold retention may vary based on payload density, ambient conditions, or improper ice pack preparation.

Reliability & Applications

• Trusted by laboratories, healthcare facilities, and logistics providers for:
• Transporting blood tubes, urine vials, or frozen specimens.
• Dry ice shipments in harsh conditions (with secondary canisters).
• Includes a validated test report for regulatory compliance.
